kinectセンサーから任意の範囲の深度マップ抽出
深度マップ
- kinectセンサーがサポートする850〜4000の範囲で深度の検出を行う。
- それ以外は白で表示しない。
- 基本的の深度データの操作の方法は、Working with Depth Dataより。
implementation
- 深度を検出する関数
- byte[] 配列で深さを表現し、1ピクセルに2バイトを使うため、それぞれに対応するビットシフトオペレーターを、タイプに応じて使う必要がある。
- Depthタイプを使う場合
- 2つめのみを8ビット左に
Distance (0,0) = (int)(Bits[0] | Bits[1] << 8 );
-
- DepthAndPlayerIndexタイプを使う場合
- 1つめを3ビット右に(プレイヤーインデックスをスキップ)、2つめを5ビット左に
- DepthAndPlayerIndexタイプを使う場合
Distance (0,0) =(int)(Bits[0] >> 3 | Bits[1] << 5);
-
- 今回の例は、PlayerIndexは使わないため以下
private int GetDistance(byte firstFrame, byte secondFrame) { int distance = (int)(firstFrame | secondFrame << 8); return distance; }
深度マップのカラー設定

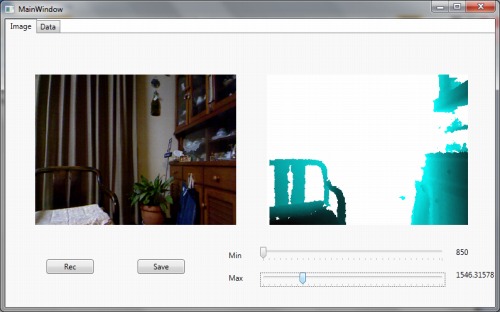

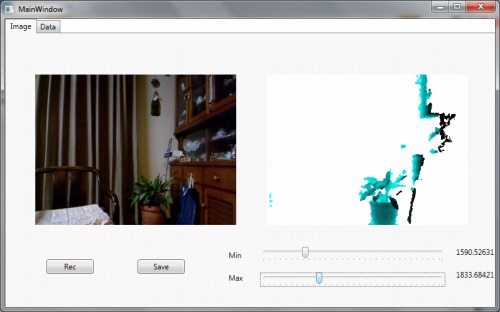

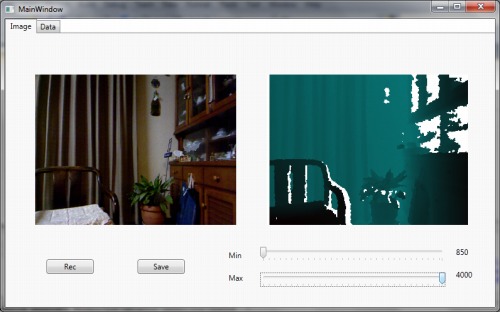

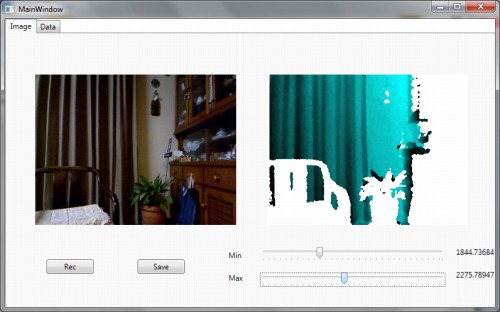

- 範囲の設定には2つのスライダーを使用。
- スライダーの関数の例
private void slider2_ValueChanged(object sender, RoutedPropertyChangedEventArgs<double> e) { if (slider2.Value <= slider1.Value) //minがmaxを越えないためのチェック slider2.Value = slider1.Value + 10; maxRange = slider2.Value; }
- スライダーで指定した最大深度max、最小深度minの差から範囲を決定し、色の濃さを決定
255 * (distance - min)/(max - min)
- それ以外の場所は白で表示
private byte[] GenerateColoredBytes(ImageFrame imageFrame) { int height = imageFrame.Image.Height; int width = imageFrame.Image.Width; //Depth data for each pixel Byte[] depthData = imageFrame.Image.Bits; //colorFrame contains color information for all pixels in image //Height x Width x 4 (Red, Green, Blue, empty byte) Byte[] colorFrame = new byte[imageFrame.Image.Height * imageFrame.Image.Width * 4]; //hardcoded locations to Blue, Green, Red (BGR) index positions const int BlueIndex = 0; const int GreenIndex = 1; const int RedIndex = 2; var depthIndex = 0; double range = maxRange - minRange; for (var y = 0; y < height; y++) { var heightOffset = y * width; for (var x = 0; x < width; x++) { var index = ((width - x - 1) + heightOffset) * 4; var distance = GetDistance(depthData[depthIndex], depthData[depthIndex + 1]); if (distance <= minRange || distance >= maxRange) { colorFrame[index + BlueIndex] = 255; colorFrame[index + GreenIndex] = 255; colorFrame[index + RedIndex] = 255; } else { byte tmp = (byte)(255 * (distance - minRange) / range); colorFrame[index + BlueIndex] = tmp; colorFrame[index + GreenIndex] = tmp; colorFrame[index + RedIndex] = 10; } //jump two bytes at a time depthIndex += 2; } } return colorFrame; }
続き
- 次回はNN法とか使ってオブジェクト認識させてりしてみる。
- →kinectと最近傍法で物体認識
